Regex for excluding images marked 'p' in \fig not working

Question

L.S.
As explained on the lingtrans wiki page, it is possible to use the location field in \fig Paratext to indicated whether an image is for Print, App or Web use. On that wiki page it refers to the document below with the following words :" Your typesetter / app creator will need to use similar rules to filter out figures that do not belong in the output that they are creating. "

Details can be found here : Indic Typesetting Collaboration Document - Google Docs

It says there: … “In SAB, to filter out images that should not be used in an app (‘a’), use regex rules that filter out images that are only for ‘p’ or ‘w’:”

Find:

(?i)\fig ([^|]|){3}([pw]+)|[^]\fig* Replace with nothing. (For USFM 2)

(?i)\fig [^]\bloc="[pw]+"[^]\fig* Replace with nothing. (For USFM 3)

Has somebody used these regexes and got them working ? I have but they do not seem to work. Any help or guidance you can give is appreciated.
goodgoan
ps Just posted this in the SAB forum as well, and hoping for some regex input here as well. Thanks in advance.

Answer 1

anon291708:

The best way is to mark them as “code” by putting them inside double single-quotes: {regex}
e.g.: (?i)\\fig ([^|]*\|){3}([pw]+)\|[^\\]*\\fig\*

Thank you @anon291708 for this suggestion. I’m having trouble typing the same single quote as you are.

I type this:

And it comes out like this:

Any suggestions?

Comments

Perhaps the backquote character (`)? That is, two of those characters before and two after the text you want to protect.
example text

---

\\fig (?+) \\r\\n\\p[0-9]+

That’s it! Thanks.

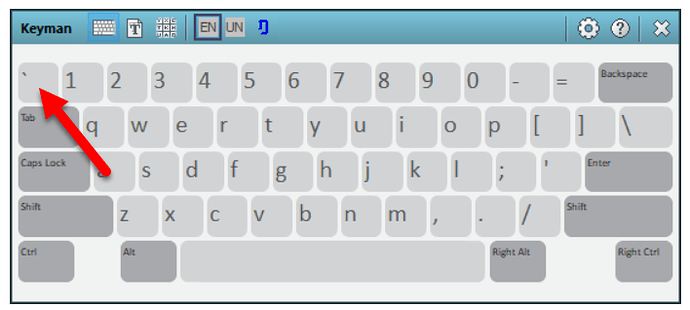

For US keyboards, that is in the upper-left of the keyboard, on the same key for tilde ~.

image708×319 49.1 KB

Answer 2

after (?i) y9ou only have one \. you need 2 \

Comments

Hello anon467281, thanks for your quick reply. I don’t know how that backslash dropped dropped out while copy and pasting … it actually is with two backslashes in SAB :
(?i)\fig ([^|]|){3}([pw]+)|[^\]\fig*

---

once more (?i)\fig ([^|]|){3}([pw]+)|[^\]\fig* This is weird, this editor changes all the double slashes in single slashes. Any tips on how to regexes here that are not changed by this editor?

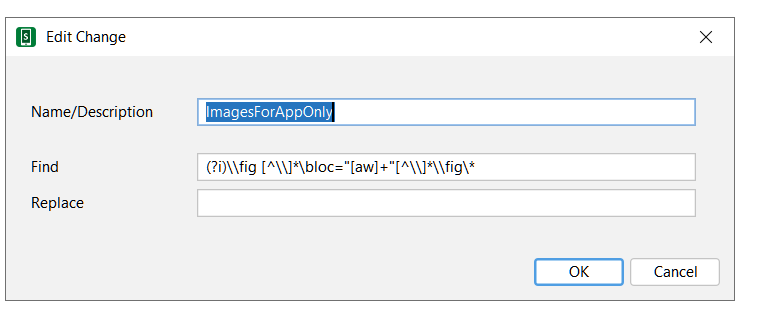

image759×314 4.91 KB

---

Hello anon467281,
The solution was here:

SIL Scripture Software Community – 3 May 21

Regex to exclude images meant for print does not work

What it shows above is not the actual regex. There are missing backslashes, and some of the asterisks have been converted into italic formatting. Are you actually using these regexes? Find: (?i)\\fig ([^|]*\|){3}([pw]+)\|[^\\]*\\fig\* (For USFM...

Thanks,
goodgoan

---

goodgoan:

Any tips on how to regexes here that are not changed by this editor?

The best way is to mark them as “code” by putting them inside double single backquotes: ``{regex}``
e.g.: (?i)\\fig ([^|]*\|){3}([pw]+)\|[^\\]*\\fig\*
